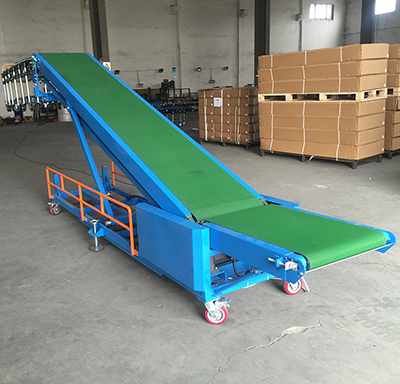

Truck loading conveyor
Dockless loading conveyor is quite welcome to automatically load or unload goods in and out of trailers/vans/truck/containers in warehouse,harbor,airport,dock,etc.it solves the problems of no shipping docks when loading or unloading.the mechanized operation largely increases work efficiency,relieves labor intensity and also reduces cost for modern enterprises in a side range of applications.it facilitates goods handing work and also provides advantages to advanced production,modernized mangement and safe operation.
|
Description
| Model | Belt conveyor part | Tongue come into container | Belt width (mm) | Table width (mm) | Adjusted height(mm) | Dead weight （kgs) | Speed (m/min) | Power for conveying | Power for uplifting |

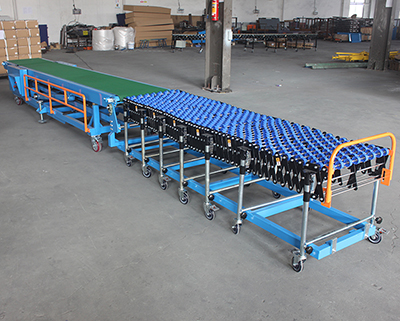

| DG | 4.7m inclined belt conveyor | 6 section gravity wheel conveyorx Expandable range:2200~6900mm | 600/800/1000 | 800/1000/1200 | 700~2500 | 850 | 10~20m/min | 1.5kw | 2.5kw |

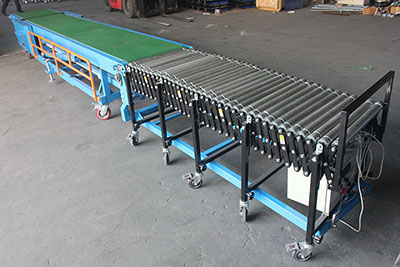

| DD | 4.7m inclined belt conveyor | 4 section motorized roller conveyor Expandable range:1700~4200mm | 600/800/1000 | 800/1000/1200 | 700~2500 | 880 | 10~20m/min | 1.5kw | 2.5kw |
DG-600
DD-600
