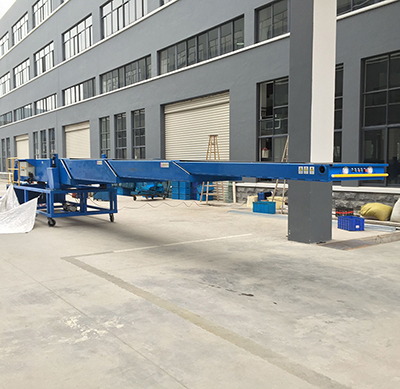

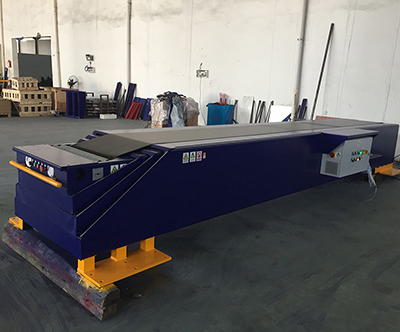

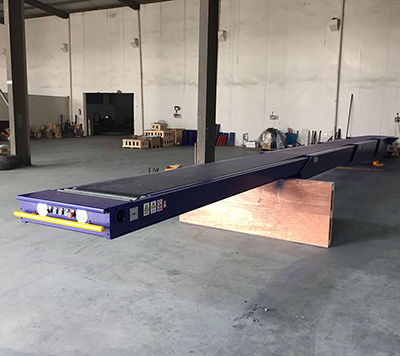

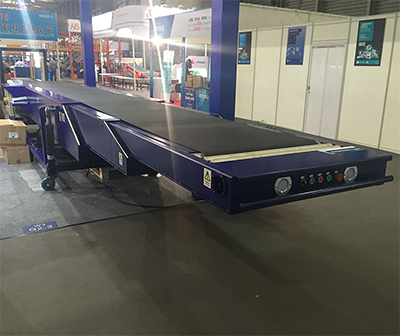

Telescopic belt conveyor
Technical parameter:
ZS-3
| fixed length(mm) | Elongation(mm) | Extended length(mm) | Height(mm) | Belt width(mm) | Telescopic speed(m/min) | Load capacity(kg/m) | Belt speed(m/min) |
| 4000 | 5400 | 9400 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 4500 | 6000 | 10500 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 5000 | 6900 | 11900 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 5400 | 7300 | 12700 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6000 | 8000 | 14000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6500 | 8300 | 15400 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 7000 | 9600 | 16600 | 750 | 600/800 | Max.12 | 50 | 20~36 |
ZS-4
| fixed length(mm) | Elongation(mm) | Extended length(mm) | Height(mm) | Belt width(mm) | Telescopic speed(m/min) | Load capacity(kg/m) | Belt speed(m/min) |
| 4000 | 7000 | 11000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 4500 | 8500 | 13000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 5000 | 9500 | 14500 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6000 | 12000 | 18000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6500 | 12800 | 19300 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 7000 | 14000 | 21000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
