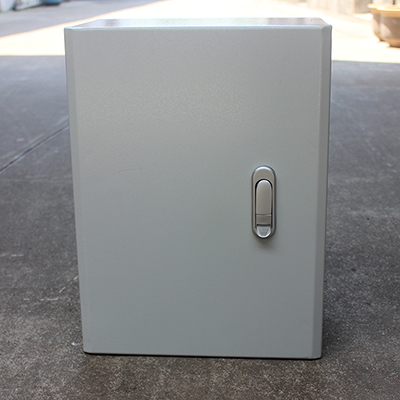

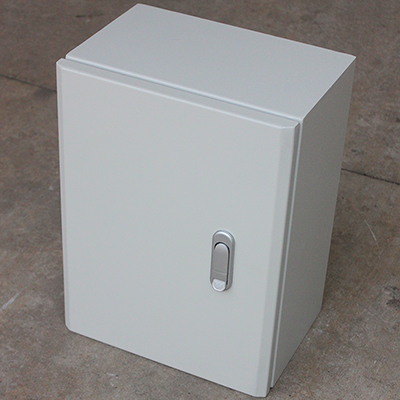

Material of junction box is cold rolled sheet or stainless steel.
Thickness is 1.2~3mm

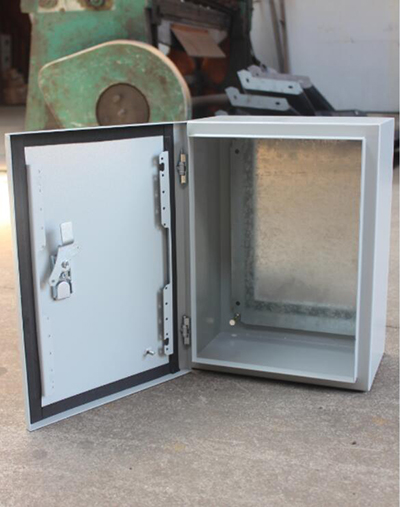

Door with PVC sealing strip and round lock
Surface treament: Polishing grinding, pickling phosphating
Color: Enclosure and door in textured powder coated RAL7035
| No | W (mm) | H(mm) | D(mm) |
| 1 | 200 | 300 | 120 |
| 2 | 200 | 300 | 210 |
| 3 | 300 | 400 | 210 |
| 4 | 380 | 300 | 210 |
| 5 | 380 | 600 | 210 |
| 6 | 500 | 600 | 210 |
| 7 | 600 | 600 | 210 |
| 8 | 600 | 760 | 210 |
| 9 | 600 | 800 | 250 |
| 10 | 600 | 900 | 300 |
| 11 | 800 | 1000 | 300 |
| 12 | 600 | 1200 | 300 |
For more sizes,kindly contact us.
Customized product can be produced in accordance with your drawing and samples,
