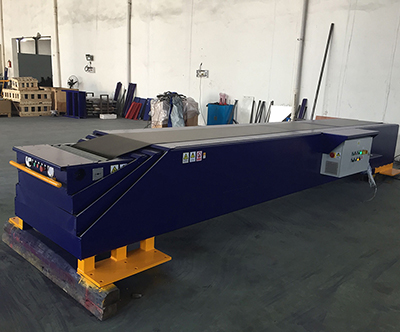

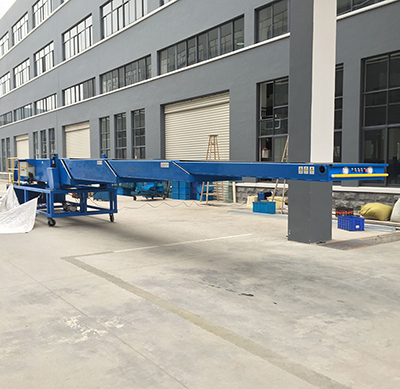

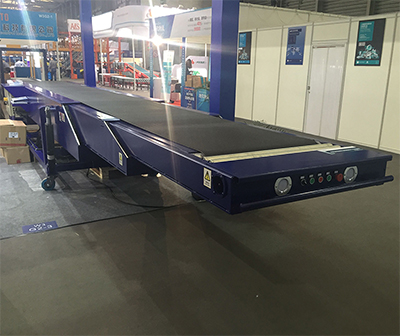

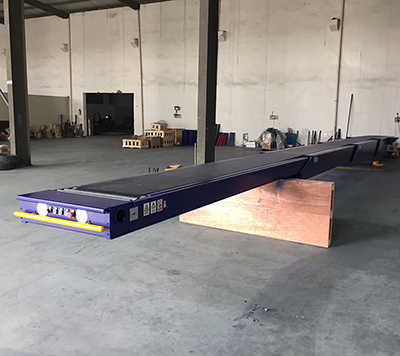

Telescopic boom conveyor
Telescopic Belt Conveyor is automatically loading / unloading equipment whose length is controllable, widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Technical parameter:
TSC-3
| fixed length(mm) | Elongation(mm) | Extended length(mm) | Height(mm) | Belt width(mm) | Telescopic speed(m/min) | Load capacity(kg/m) | Belt speed(m/min) |
| 4000 | 5400 | 9400 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 4500 | 6000 | 10500 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 5000 | 6900 | 11900 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 5400 | 7300 | 12700 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6000 | 8000 | 14000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6500 | 8300 | 15400 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 7000 | 9600 | 16600 | 750 | 600/800 | Max.12 | 50 | 20~36 |
TSC-4
| fixed length(mm) | Elongation(mm) | Extended length(mm) | Height(mm) | Belt width(mm) | Telescopic speed(m/min) | Load capacity(kg/m) | Belt speed(m/min) |
| 4000 | 7000 | 11000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 4500 | 8500 | 13000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 5000 | 9500 | 14500 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6000 | 12000 | 18000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 6500 | 12800 | 19300 | 750 | 600/800 | Max.12 | 50 | 20~36 |
| 7000 | 14000 | 21000 | 750 | 600/800 | Max.12 | 50 | 20~36 |
